Briggs Diesel Engine Irrigation Pumps

Quiet, economical and powerful, Briggs pumpsets have proven reliability and feature a range of labour saving options.

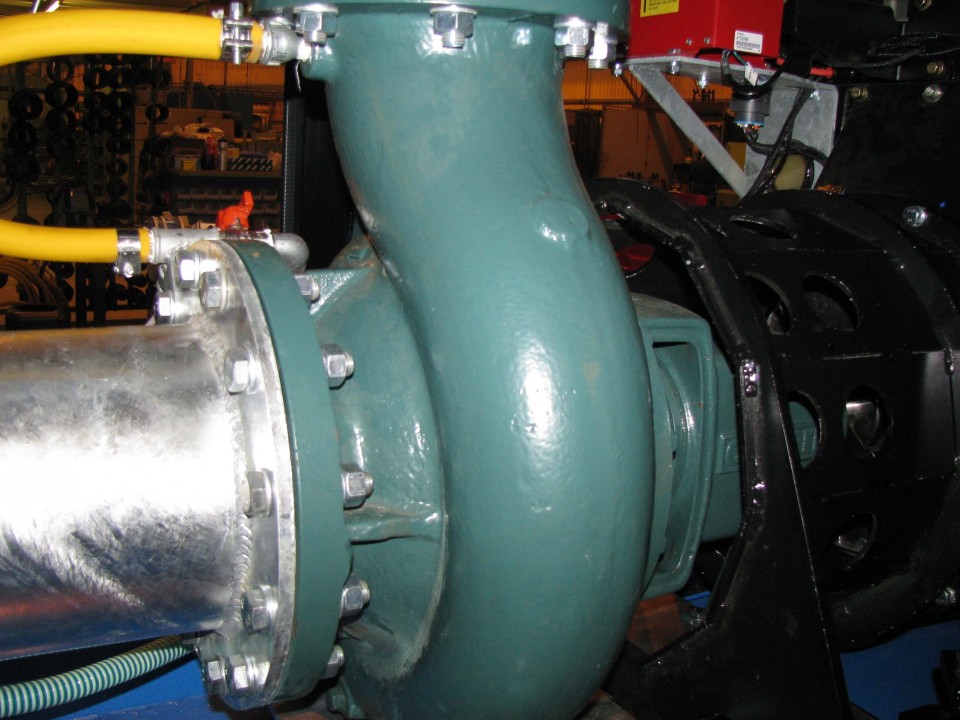

The pumpsets are based on JCB's modern, British-built Dieselmax range which are fully compliant with the latest emissions regulations and also offer improved fuel economy, low noise levels and enhanced power and torque. Four engine sizes are available, from 74 - 173 hp, driving Caprari centrifugal pumps with Briggs engine protection systems and throttle controllers.

Bunded fuel tanks are standard and fitted within sound proofed casing (optional), the sets are safe, secure and robustly engineered for continuous use under farm conditions. Non soundproofed models are also available.

With 12 volt electric primers the sets are particularly easy to use and the optional mobile phone autostart system can save time, effort and money.

We offer a 1 year parts and labour warranty on the whole unit whilst the engine is also backed up by the UK JCB Powersystems network of dealers.

It is essential for the warranty to be valid that genuine parts are fitted during the warranty period and that the correct grade of lubricants are used.

Genuine parts are competitively priced and general servicing can be carried out by any competent fitter.

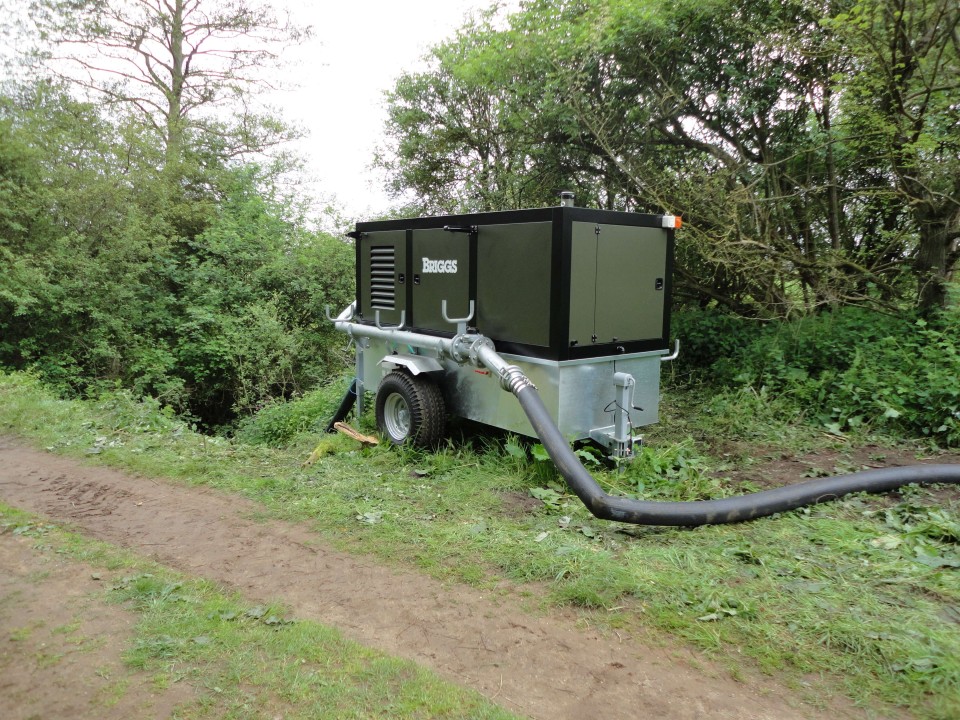

The NATO green paint colour allows the pump to blend in with natural surroundings.

TECHNICAL SPECIFICATION

JCB Pump Features

Make an enquiry about Irrigation Pumps

Features

Acoustic canopy

The canopy has been designed to allow correct airflows for cooling the range of engines being offered. This has been checked and verified by JCB's own technical department.
Excellent noise reduction is achieved with the use of rockwool which has be...

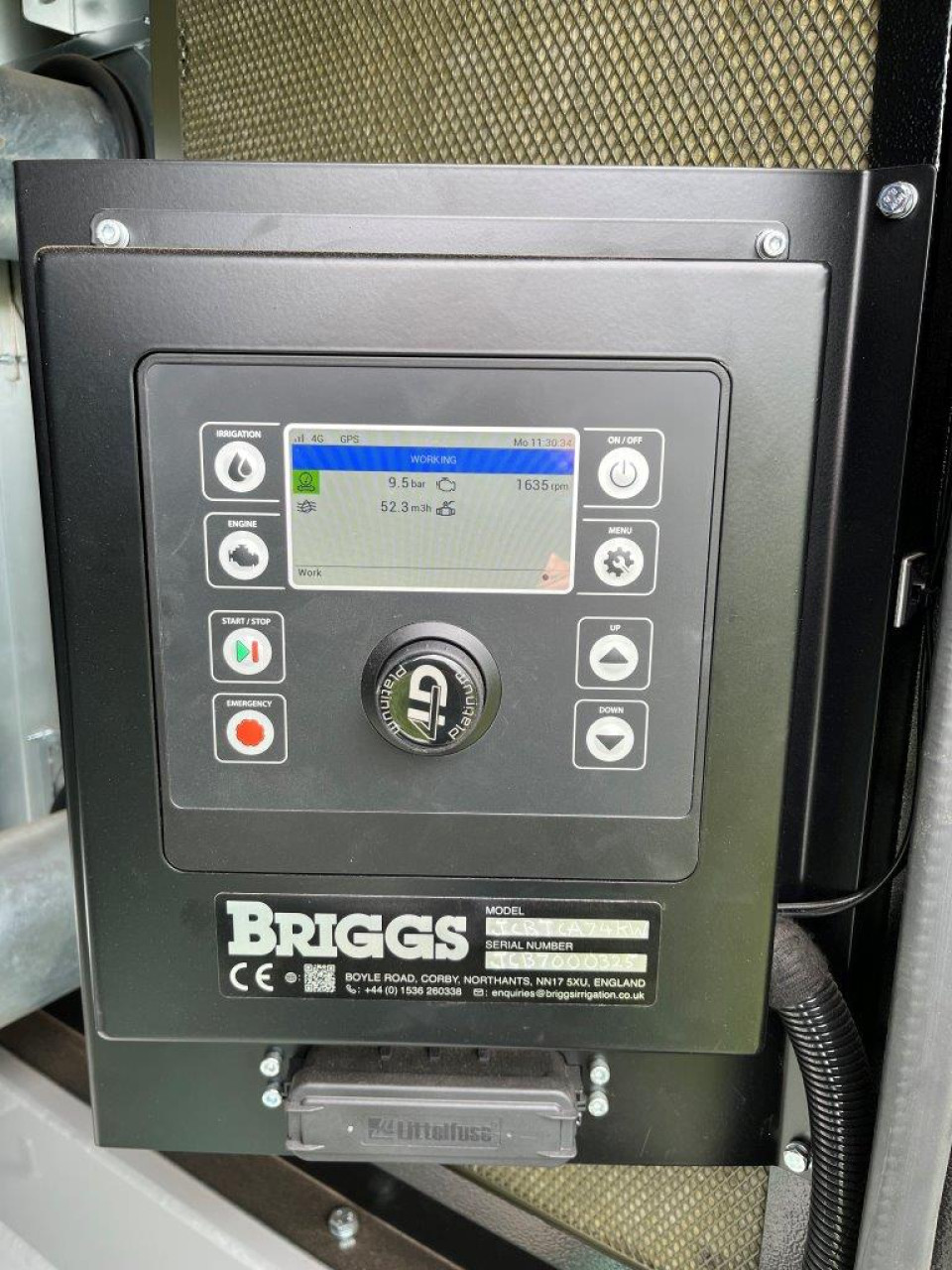

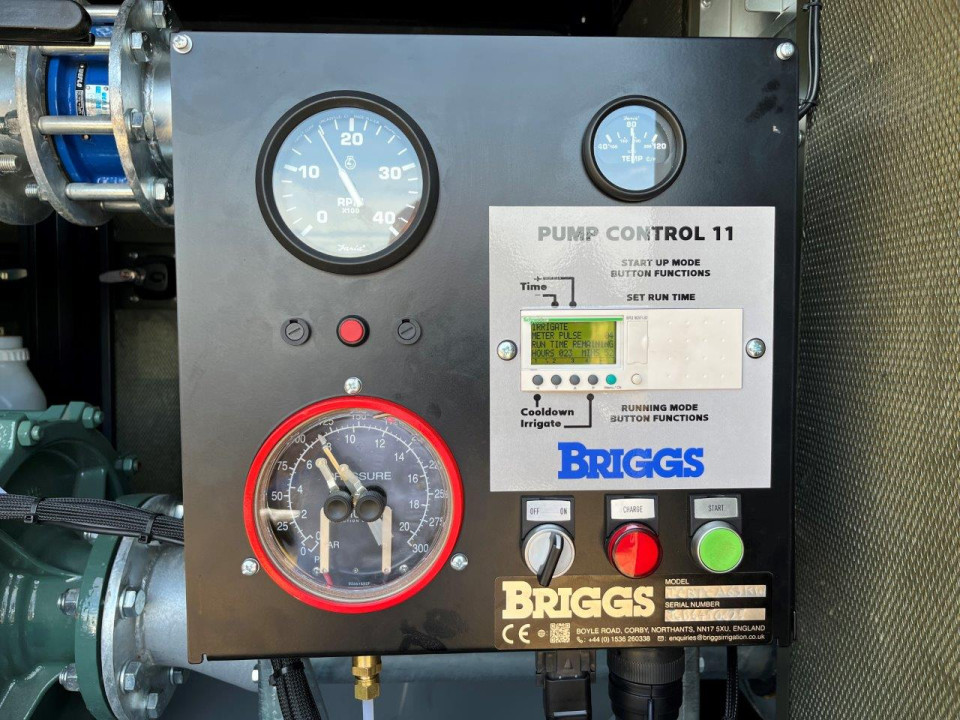

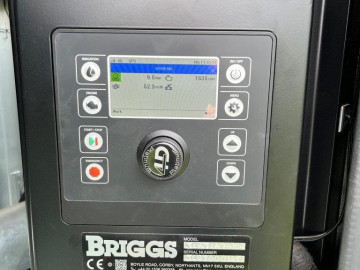

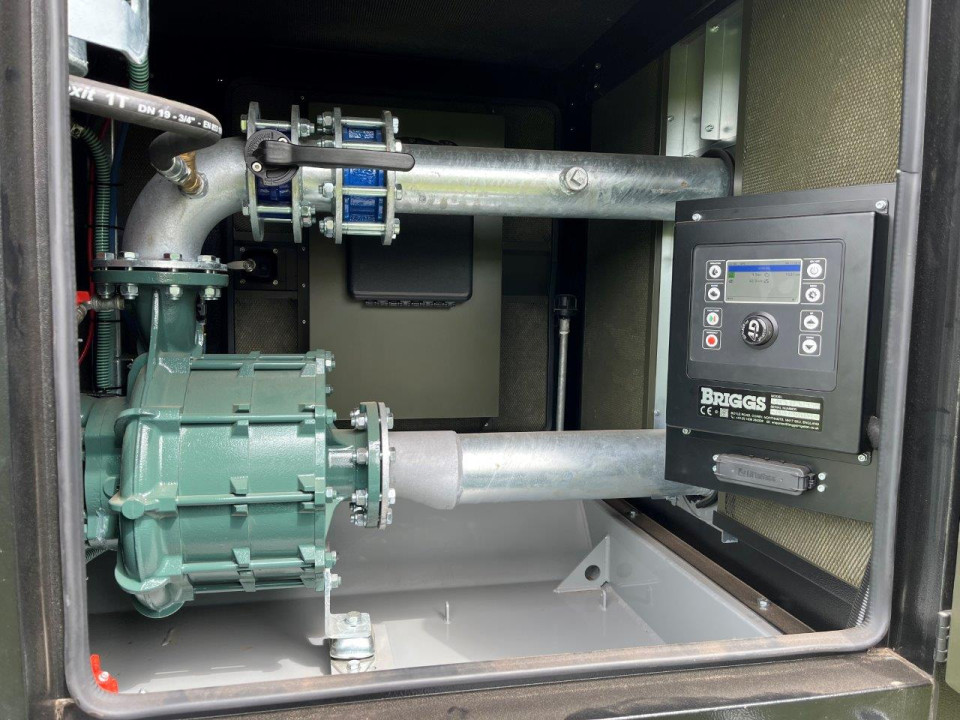

Briggs Control Panel 11

All of the engines are equipped with turbocharger and intercooler. It is best practice with a turbocharger to operate a cool down process when irrigation is finished so that the turbo charger has some time to cool. Our control panel has a digital log...

Bunded 1500l fuel tank

Fully bunded 1500l fuel tank with galvanised lockable security cover over fuel filler cap.

12 Volt electric primer

There 12 volt priming system is designed to prime the pump in a technically correct way. e.g. Fill the pump with water and then start the engine. This is a heavy duty vacuum pump and as an example can prime a 6 metre x 6" diameter suction hose with a...

Stainless Steel Exhaust Manifold & Silencer

Throttle controller

This device automatically adjusts the engine RPM so that when the flow rate changes the pressure remains constant. i.e. if the pump is supplying 2 machines and one stops, the engine RPM would be automatically reduced to keep the pressure constant.

Radiator Water Level Switch

This is a probe type sensor which is mounted directly in the back of the radiator. It has a built in override timer so that the engine does not cut out due to the 'sloshing' effect which can occur when the thermostat opens and water exchange is takin...

Suction Hose

Heavy duty suction hose resists collapse, particularly in very hot conditions.

Basket strainer and Footvalve

The heavy duty plastic suction strainer is a robust alternative to the conventional wicker basket unit. It is made to replicate the flow characteristics of the wicker basket but is more durable. It is available in three sizes: 4", 5", and 6". The uni...

Mudguards and pipe storage brackets

Moving between sites is easier and cleaner with these fitted.

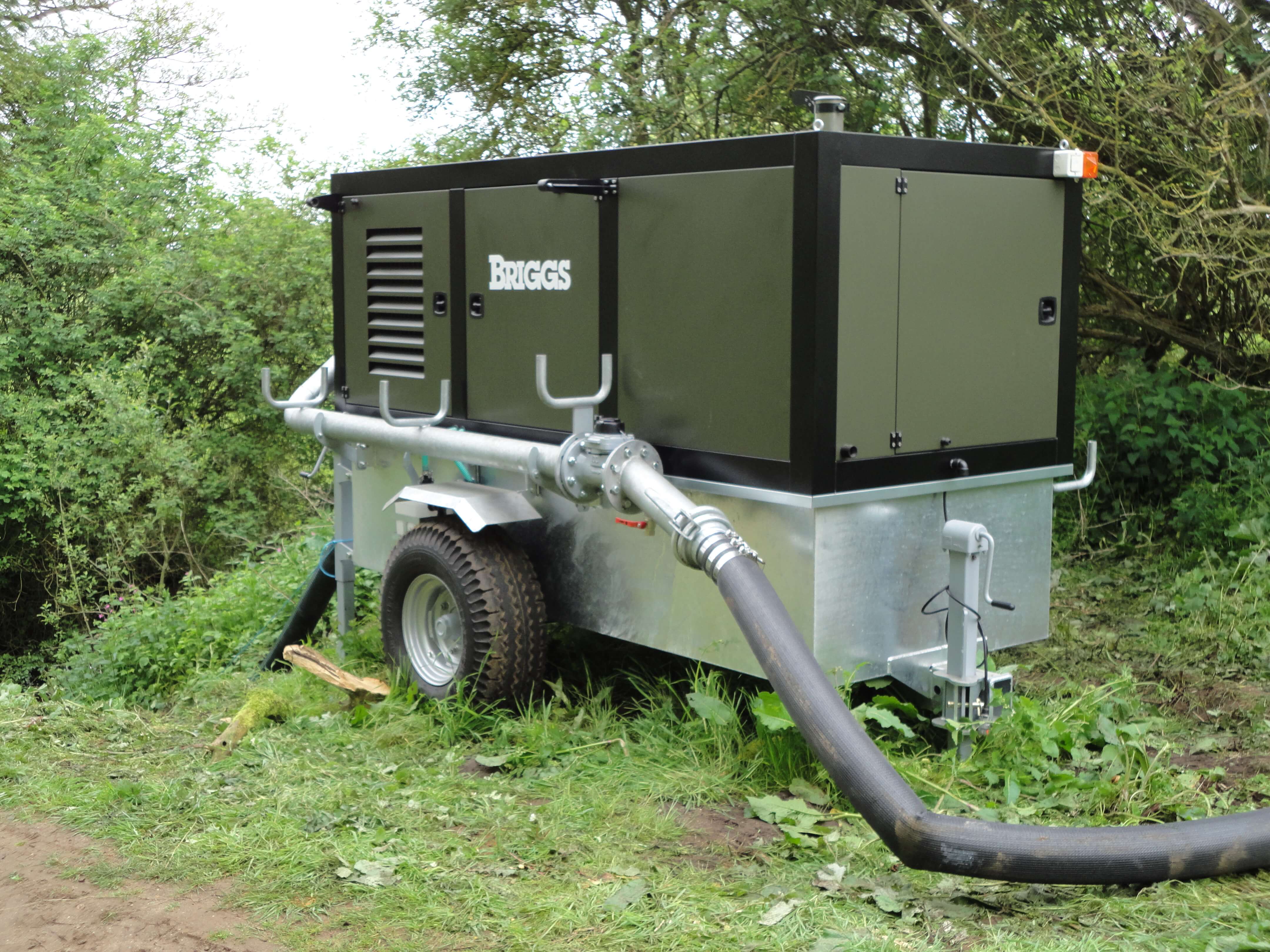

Detachable Drawbar

For theft prevention remove the drawbar.

Galvanised lockable fuel filler cover

Galvanised lockable fuel filler cover supplied with high security padlock.

Door handles, locks and hinges

Door handles / locks and hinges have been selected to offer good strength and security. The doors can be retained open so that in windy conditions operation of the unit is easier. The door catches are excellent quality lockable units as used on many ...

Interior Light

For good visibility at night an interior light is fitted as standard inside all acoustic canopies.

Engine Oil Hand Pump

To facilitate oil changes an engine oil hand pump is fitted as standard.

Exhaust Raincap

Fitted as standard on all pumps.

Hand Primer

Fitted as standard to all pumps as a back up primer. Can also be used to drain water from the area under the engine if required.

Engine & Pump Anti Vibration Mounts

Anti vibration mounts are fitted to all engine and pump mounting points as standard.

Options

Remote Start / Stop & SMS Alert System

Facility to start pump unit remotely via your mobile phone. A SIM card is located in the pump control panel and when a call is received a warning noise is activated for 10 seconds (along with an external flashing beacon), the electric primer is activ...

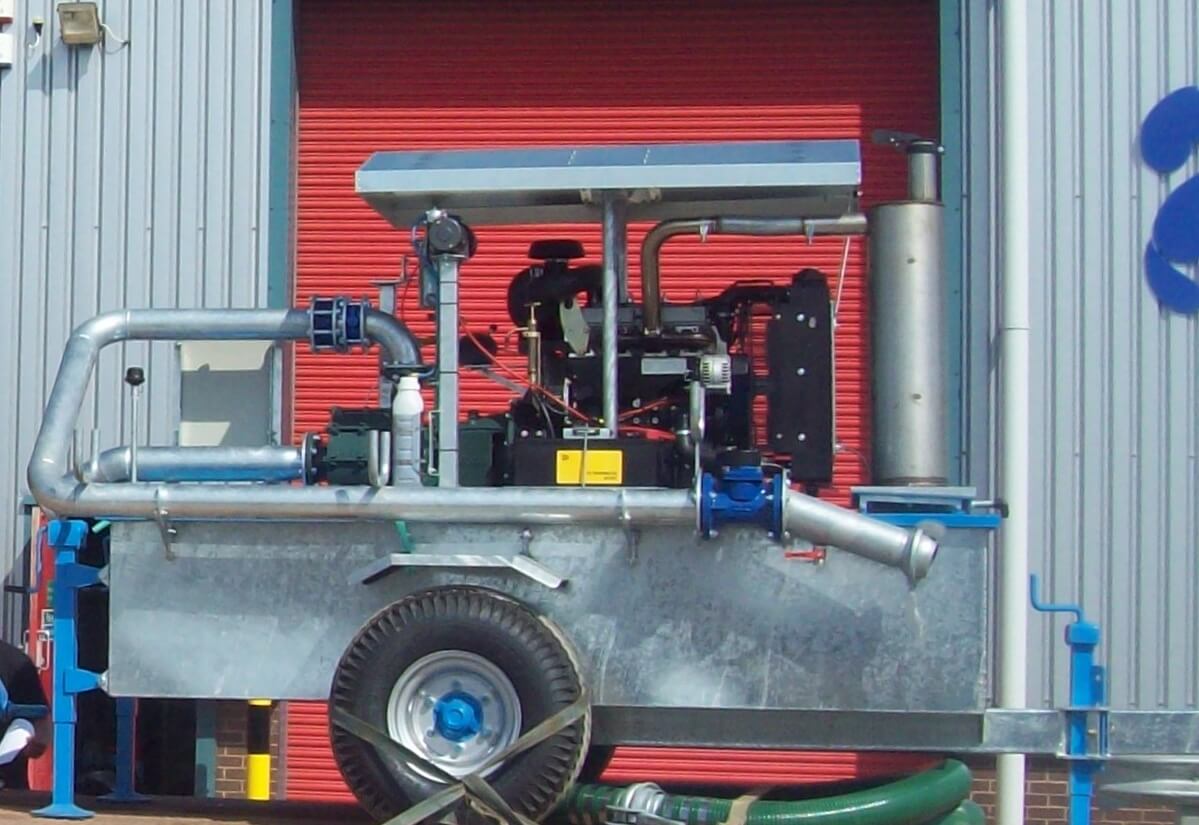

Watermeter

Can be supplied either mounted on the pump or separately with fittings required. Can also be supplied with a pulse output which will give the facility to stop the engine in the event of 'HIGH FLOW' or "LOW FLOW".

Flow Switch On Delivery Pipe

This ensures that the engine is stopped if the flow stops. A probe type switch is used which is far more reliable than the traditional paddle type switches.

Delivery hose

Heavy duty layflat delivery hose can be made up to any length with any type of fitting required.

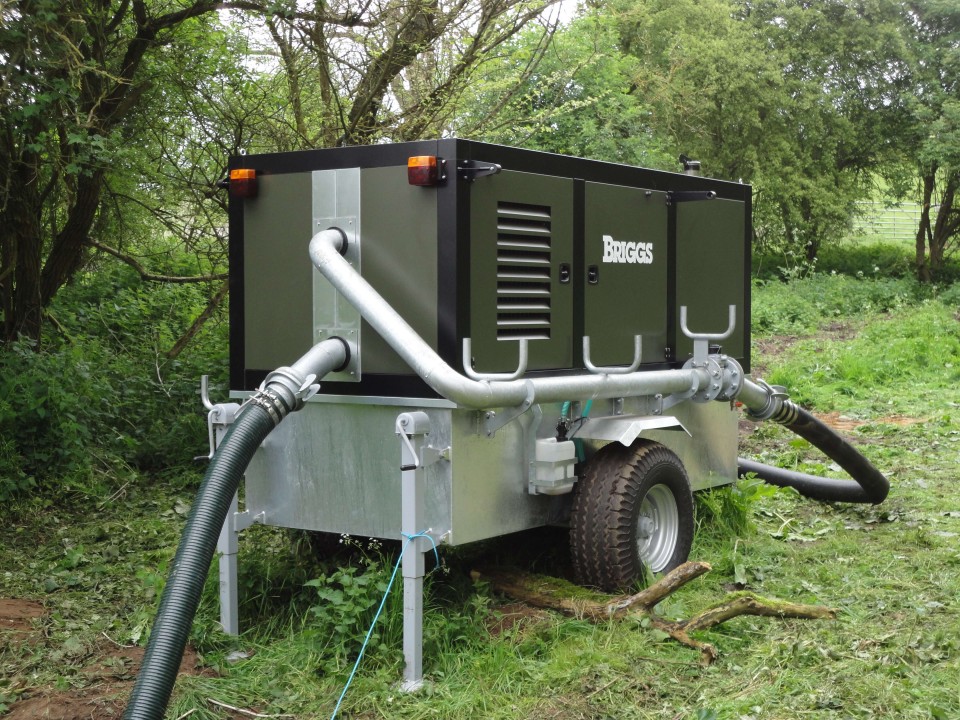

Road Lights

Skid Base

Pump units can be supplied on skid bases with or without incorporated fuel tank. Skid bases incorporate fork lift pick up points and bolt down locations.
